Flame Retardant ESD Rubber Mat 2mm 3mm Thickness 10e6-10e9 Ohm
Ürün ayrıntıları:
| Menşe yeri: | Şangay, Çin |
| Marka adı: | Herzesd |
| Model numarası: | HZ-30617 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 100 |
|---|
|
Detay Bilgi |
|||
| Kalınlık: | 2mm/3mm | Malzeme: | nitril kauçuk |
|---|---|---|---|
| Yüzey direnci: | 10e6-10e9 ohm | Katman direnci altında: | 10e3-10e6 ohm |
| Boyut: | 1*10M; 1*10M; 0.6*10M; 0,6*10M; 1.2*10M per roll Rulo başına 1 | Isı direnci: | 340 ℃ |
| Hacim direnci: | 10E7-10E10 ohm*cm | Yüzey katmanı kalınlığı: | 0,5 mm |
| Alt Katman Kalınlığı: | 1.5 mm | Yüzey tipi: | Matt/parlak |
| Renk Seçenekleri: | yeşil, gri, mavi | Yüzey direnci sınırı: | ≤10e6ohm |
| Model numarası: | HZ-30617 | Normal boyut: | 1m*10m; 1m*10m; 1.2m*10m 1,2m*10m |
| Paketleme: | Plastik membran+palet | ||
| Vurgulamak: | Flame retardant ESD rubber mat,2mm ESD rubber mat,3mm thickness ESD mat |
||
Ürün Açıklaması
Flame Retardant ESD Antistatic Matting High Temperature Natural Rubber Sheet Table Mat Floor
Product Specifications
| Model | HZ-30617 |
|---|---|
| Thickness | 1.8mm, 2mm, 3mm |
| Normal Size | 1m*10m; 1.2m*10m |
| Color | Green/Grey/Blue |
| Surface | Matt/Glossy |
| Surface Resistance | ≤10e6ohm |
| Heat Resistance | 340℃ |
| Volume Resistance | 10e7-10e10 ohm*cm |
Key Features
- ESD tabletop mats provide an ESD-safe work surface on tables or benches
- Available in various sizes and thicknesses
- Includes grounding hardware for proper static dissipation
- Surface layer: 0.5mm thick static-dissipative layer
- Bottom layer: 1.5mm conductive layer

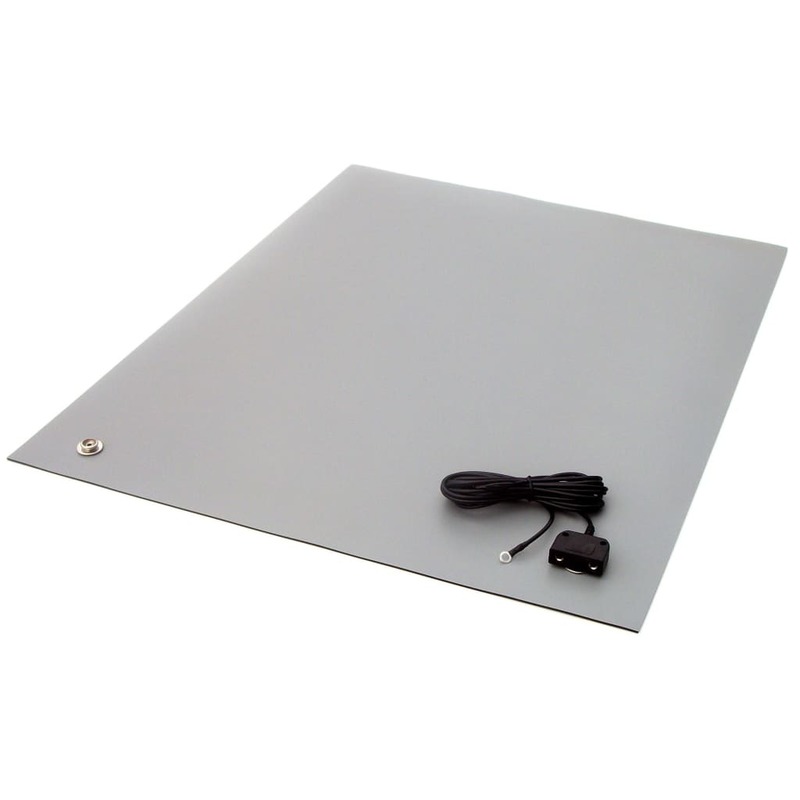

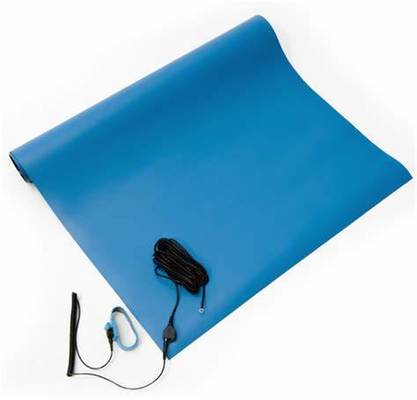

Product Images
Packaging & Shipping
Company Information
The ESD products manufactured and supplied by Shanghai Herzesd Industrial are the result of meticulous planning and technological excellence. Our products showcase a fine amalgamation of excellence, quality, innovation, and technology. A continuous upgradation is always at place to enhance the security features applicable at various stages and premises on ESD accessories. These products are long lasting and equipped with precision technology. We have a group of hard working personnel who keep detecting the machines for better security.
