ESD Rubber Mat 2mm 3mm Antistatic Workbench Cover 10e6-10e9 Ohm
Ürün ayrıntıları:
| Menşe yeri: | ÇİN |
| Marka adı: | Herzesd |
| Model numarası: | HZ-30617 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 100 |
|---|
|
Detay Bilgi |
|||
| Kalınlık: | 2mm/3mm | Malzeme: | nitril kauçuk |
|---|---|---|---|
| Yüzey direnci: | 10e6-10e9 ohm | Katman direnci altında: | 10e3-10e6 ohm |
| Boyut: | 1*10M; 1*10M; 0.6*10M; 0,6*10M; 1.2*10M per roll Rulo başına 1 | Hacim direnci: | 10E7-10E10 ohm*cm |
| Sürtünme Elektrostatik Şarj: | <100V (yüzey), <50V (iletken katman) | Model: | HZ-30617 |
| Normal boyut: | 1m*10m; 1m*10m; 1.2m*10m 1,2m*10m | Renk: | Yeşil/gri/mavi |
| Yüzey kaplaması: | Matt/parlak | Statik dağılma katmanı: | Yüzey direnci 107-109ohm |
| İletken katman: | Yüzey direnci ≤106ohm | İşleme hizmeti: | Kesme |
| Rengi Özelleştir: | Örneğinizle mevcut | ||
| Vurgulamak: | ESD rubber mat 2mm antistatic,ESD workbench cover 3mm,antistatic rubber mat 10e6-10e9 ohm |
||
Ürün Açıklaması
HerzESD offers a comprehensive range of ESD table mats in flexible rubber and vinyl materials, as well as rigid options, designed for high-tech industry applications. Our ESD products provide superior static control for sensitive electronic work environments.
Our ESD Rubber and PVC mats feature:
- Resistance to hot solder and chemicals
- Two-layer construction with static dissipative top and conductive bottom
- Available in 2-layer or single layer homogeneous material options
- Custom sizing available upon request

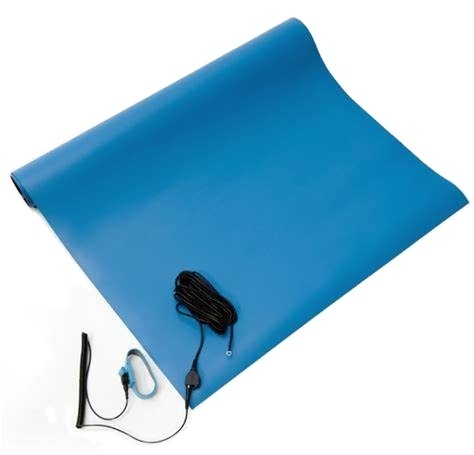

- Available in rolls or complete ESD work surface mat kits with ground snap and common point ground
| Model | HZ-30617 |
|---|---|
| Thickness | 1.8mm, 2mm, 3mm |
| Standard Sizes | 1m×10m; 1.2m×10m |
| Color Options | Green/Grey/Blue |
| Surface Finish | Matt/Glossy |
| Surface Resistance | ≤106ohm |
| Volume Resistance | 107-1010 ohm·cm |
| Feature | Specification |
|---|---|
| Static Dissipation Layer | Surface resistance: 107-109ohm |
| Friction Electrostatic Charge | <100V |
| Conductive Layer | Surface resistance: ≤106ohm |
| Friction Electrostatic Charge | <50V |
| Volume Resistance | 107-1010 ohm·cm |
The ESD products manufactured and supplied by Shanghai Herzesd Industrial combine meticulous planning with technological excellence. Our products represent the perfect balance of quality, innovation, and advanced technology.
We continuously upgrade our products to enhance security features for various ESD applications. Our durable products incorporate precision technology, supported by a dedicated team committed to improving machine security and performance.
Electronic components and assemblies vulnerable to electrostatic discharges (ESD) include sensitive elements that can be destroyed or damaged when exposed to excessive current or impact energy. These typically include semi-conducting components and thick- and thin-film construction elements.
Human handling is the most common cause of ESD damage. A person can generate several thousand volts simply by walking. While humans can feel discharges at 2000-3000V, many ESD components are damaged at much lower levels.
Before implementing ESD safe products, it's essential to establish an ESD safe procedure according to ESD standards IEC 61340 or ANSI S2020. These standards form the foundation of ESD preventive protection and quality assurance.
In addition to our Anti-Static conductive ESD Workstations, we offer a comprehensive range of ESD solutions including:
- Antistatic ESD Chairs
- ESD Cleaning & Maintenance products
- ESD Clothing and Footwear
- ESD Flooring & Table Mats
- ESD Safe Packaging
- Personal Grounding Materials
- Protective Storage Systems
- Test & Measuring Equipment
- Training and Audit services
HerzESD is committed to serving our customers with accurate, clear information - even when it means correcting common misconceptions in the market. We take pride in providing only correct ESD solutions.
To maintain this standard, we collaborate with reliable ESD manufacturers and suppliers. HerzESD serves as a solid partner in the industry, working with international collaborators to develop innovative solutions for static electricity control.
