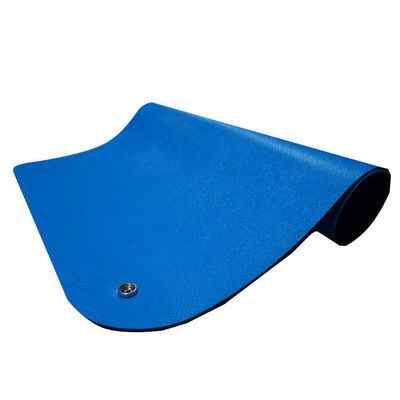

HerzESD ESD Rubber Mat 2mm 3mm Thickness 10e6-10e9 Ohm Surface Resistance
Ürün ayrıntıları:
| Menşe yeri: | ÇİN |
| Marka adı: | Herzesd |
| Model numarası: | HZ-30617 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 100 |
|---|
|
Detay Bilgi |
|||
| Renk: | Yeşil, gri, mavi veya özelleştirilmiş | Kalınlık: | 2mm/3mm |
|---|---|---|---|
| Malzeme: | Nritril Kauçuk | Yüzey direnci: | 10e6-10e9 ohm |
| Katman direnci altında: | 10e3-10e6 ohm | Boyut: | 1*10M; 1*10M; 0.6*10M; 0,6*10M; 1.2*10M per roll Rulo başına 1 |
| Model: | HZ-30617 | Normal boyut: | 1m*10m; 1m*10m; 1.2m*10m 1,2m*10m |
| Yüzey: | Matt/parlak | Hacim direnci: | 10E7-10E10 ohm*cm |
| Statik dağılma katmanı: | Yüzey Direnci: 107-109ohm | Sürtünme Elektrostatik Şarj: | <100V |
| İletken katman: | Yüzey Direnci: ≤106Ohm | Sürtünme Elektrostatik Şarj: | <50V |
| Hacim direnci: | 107-1010 ohm*cm | ||
| Vurgulamak: | ESD rubber mat 2mm thickness,ESD rubber mat 3mm thickness,ESD rubber mat 10e6-10e9 ohm resistance |
||
Ürün Açıklaması

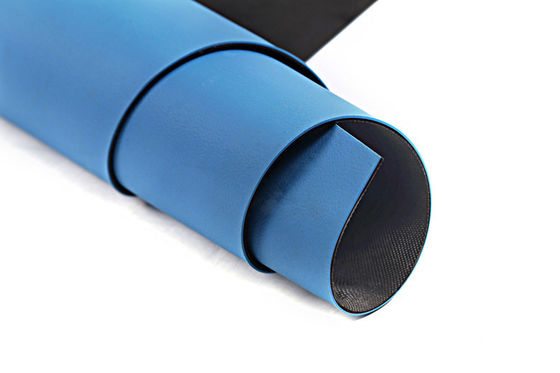

HerzESD offers a comprehensive range of ESD table mats in flexible rubber and vinyl materials, serving the high-tech industry with premium static control equipment. Our ESD Rubber and PVC mats provide excellent resistance to hot solder and chemicals, featuring a two-layer construction with a static dissipative top and black conductive bottom.
ESD vinyl table mats are ideal for general electronics assembly, available in both 2-layer mat and single layer homogeneous material options. Both rubber and vinyl mats come in rolls or as complete ESD work surface mat kits including ground snap and common point ground.
Custom sizing available upon request to meet special ESD mat requirements.
| Model | HZ-30617 |
|---|---|
| Thickness | 1.8mm, 2mm, 3mm |
| Standard Sizes | 1m×10m; 1.2m×10m |
| Color Options | Green/Grey/Blue |
| Surface Finish | Matt/Glossy |
| Surface Resistance | ≤106ohm |
| Volume Resistance | 107-1010 ohm·cm |
- Static Dissipation Layer: Surface resistance 107-109ohm
- Friction Electrostatic Charge: <100V
- Conductive Layer: Surface resistance ≤106ohm
- Friction Electrostatic Charge: <50V
- Volume Resistance: 107-1010 ohm·cm
Shanghai Herzesd Industrial manufactures ESD products through meticulous planning and technological excellence. Our products combine quality, innovation, and precision technology, with continuous upgrades to enhance security features. We maintain rigorous quality control with dedicated personnel ensuring optimal machine performance for superior ESD accessories.
Electronic components and assemblies vulnerable to electrostatic discharges (ESD) can be destroyed or damaged when exposed to excessive current or impact energy. These typically include semi-conducting components and thick-/thin-film construction elements, often damaged through human handling. Humans can accumulate several thousand volts simply by walking, with discharges perceptible at 2000-3000V - already beyond many components' tolerance levels.
Before implementing ESD-safe products, establish procedures following ESD standards IEC 61340 or ANSI S2020 as the foundation for preventive protection and quality assurance. Beyond our Anti-Static ESD Workstations, we offer a complete range of ESD solutions including chairs, cleaning products, clothing, footwear, flooring, packaging, grounding materials, storage systems, test equipment, and training.
HerzESD is committed to serving customers with accurate, clear information - even when it challenges established market opinions. We take pride in delivering only correct ESD solutions through reliable manufacturing partnerships and continuous innovation in static electricity control.
As a trusted partner in the industry, HerzESD collaborates with international experts to develop improved solutions for static electricity management, ensuring our customers receive the most effective protection available.
